Power Factor in Motors: Why It Matters & How to Improve It

Most electrical loads in industry are inductive — motors, transformers, ballasts. They draw not only useful "active" power that does real work, but also "reactive" power that magnetises iron cores. Power factor (PF) is the ratio between active power and the total apparent power. A low PF means you draw more current than necessary, which leads to higher bills, oversized cables, and utility penalties. Understanding and correcting PF is one of the easiest ways to cut industrial electricity costs.

1. What is Power Factor — Simply

Imagine pulling a wheelbarrow. Active power is the energy that moves it forward. Reactive power is wasted on lifting or tilting that doesn't contribute to motion. Power factor is the cosine of the angle between current and voltage waveforms:

• PF = 1.0 (unity): all current does work — ideal
• PF = 0.85: 15% of current is "wasted" on magnetising
• PF = 0.70: 30% wasted — typical for unimproved industrial plants

2. Typical Motor Power Factor Values

• Fully loaded 3-phase induction motor: 0.82–0.92
• Same motor at 50% load: 0.65–0.75
• Same motor at 25% load: 0.45–0.55
• Single-phase induction motor: 0.55–0.75
• Synchronous motor: 1.0 or even leading (can supply reactive power)

Note how badly PF degrades at part load — this is why oversized motors are a hidden cost.

3. Why It Matters — The Cost Impact

• Utility PF penalty: Most Indian state utilities apply 1–2% penalty per 0.01 of PF below 0.95 (some go further). On a ₹5 lakh/month industrial bill, dropping from 0.85 to 0.95 PF saves ₹20,000–₹50,000.
• Transformer/cable sizing: Low PF means higher current. You pay for larger transformers, cables, switchgear than the actual work requires.
• I²R losses: Reactive current produces heat in cables — wasted as kWh on your meter.
• Voltage drop: Low PF aggravates voltage drop, reducing motor torque and efficiency.

4. How to Measure Plant PF

• Electricity bill: Most utilities report monthly PF on the bill
• Power analyser: Plug-in or panel-mounted devices show real-time PF
• Smart meter: Modern HT meters log PF continuously
• Calculation: PF = kW / kVA (read from energy meter)

5. Methods to Improve PF

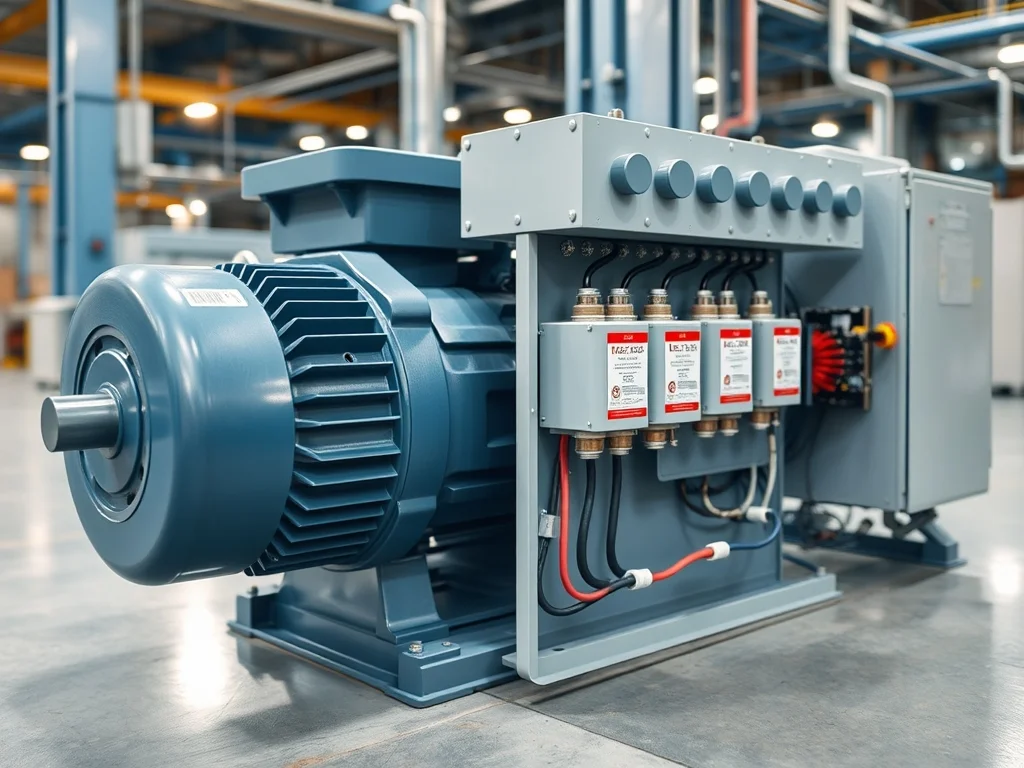

• Capacitor banks (fixed): Connected directly across motor terminals or to plant bus. Cheapest method. Risk: over-correction at light load (PF goes leading, also penalised).
• APFC (Automatic Power Factor Correction) panel: Microprocessor controller switches capacitor steps in/out based on real-time load. Maintains PF at 0.99 ± 0.01 across the day. The standard solution for plants above 100 kW.
• Synchronous condenser: Idle synchronous motor with over-excited field. Used in HV applications.
• IE3/IE4 motors: Higher efficiency motors have inherently better PF (0.88–0.92 versus 0.82–0.85 for IE1) at full load.
• Right-size motors: Run motors at 75–100% load whenever possible (avoid oversized motors running at 30% load).
• VFD on variable loads: VFDs decouple the motor from utility PF — provide near-unity PF at the supply side regardless of motor load.

6. Sizing a Capacitor Bank

Required reactive power compensation (kVAR) = Active power (kW) × (tan φ1 − tan φ2)

where φ1 and φ2 are angles corresponding to old and new PF.

Example: 100 kW load at PF 0.75 → improve to 0.95

• tan(cos⁻¹ 0.75) = 0.882
• tan(cos⁻¹ 0.95) = 0.329
• kVAR needed = 100 × (0.882 − 0.329) = 55.3 kVAR

Round up to nearest standard capacitor size — likely a 60 kVAR bank.

7. Cautions

• Harmonics: Capacitors and VFDs interact. In plants with significant VFD load, use detuned capacitor banks (with series reactors) to prevent harmonic resonance.
• Overcompensation: Leading PF is also penalised — use APFC to avoid this.
• Switching transients: Capacitor switching produces voltage spikes. Use sequenced or pre-charged switching for large banks.
