Motor Details

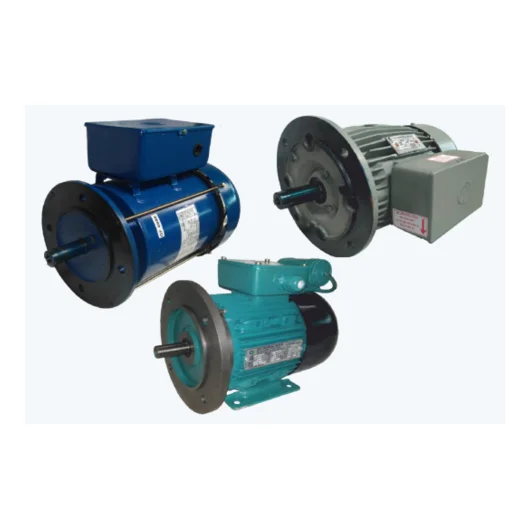

Flange Motors
Compact Flange Mounted Motors for Direct Drive Applications
Flange Mounted Motors are 3-phase motors with integral flange coupling for direct connection to driven equipment like pumps, blowers, and compressors. These motors eliminate the need for separate couplings, reducing installation space and complexity.
Available in power ratings from 0.5 kW to 30 kW with frame sizes 56 to 160, flange motors are ideal for industrial applications requiring compact design and efficient power transmission. All flange motors meet IS 4691 and IEC 60034-5 standards with superior mechanical strength.
| Description | Output Power | Voltages | Frame Size | Standards |
|---|---|---|---|---|
| Flange Motor - 0.5 kW - 230/400V 3Ph - Frame 63 | 0.5 kW | 230/400V 3Ph | 63 | IEC 60034-1, Flange Mount |
| Flange Motor - 1.5 kW - 230/400V 3Ph - Frame 90 | 1.5 kW | 230/400V 3Ph | 90 | IEC 60034-1, Flange Mount |
| Flange Motor - 3.7 kW - 230/400V 3Ph - Frame 112 | 3.7 kW | 230/400V 3Ph | 112 | IEC 60034-1, Flange Mount |
