Motor Details

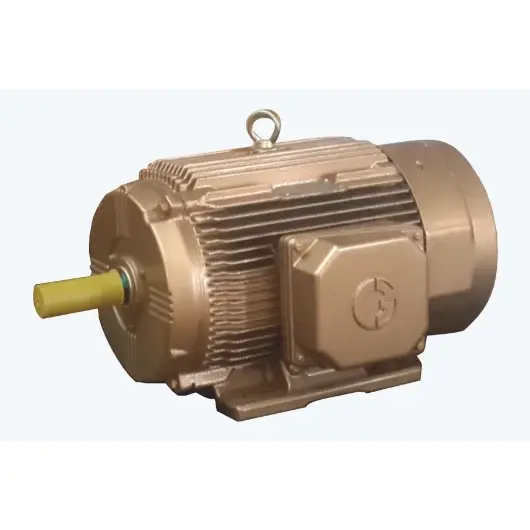

Super Premium IE4 Efficiency - Apex Series
IE4 Super Premium Efficiency
Super Premium IE4 Efficiency – Apex Series - Next-generation green motor solution from CG with maximum energy efficiency. These motors feature advanced magnetic design and premium materials for IE4 super premium efficiency level.
Available in various power ratings meeting the highest international efficiency standards. All IE4 motors are designed for maximum energy savings and environmental sustainability.
These motors incorporate state-of-the-art cooling technology and advanced thermal protection. The premium IE4 Apex series motors deliver exceptional energy efficiency and long-term operational cost savings.
| Description | Output Power | Voltages | Frame Size | Standards |
|---|---|---|---|---|
| IE4 Apex Series - 0.75 kW - 230/400V 3Ph - Frame 71 | 0.75 kW | 230/400V 3Ph | 71 | IEC 60034-30, IEC 60034-1, IE4 |
| IE4 Apex Series - 11 kW - 230/400V 3Ph - Frame 160 | 11 kW | 230/400V 3Ph | 160 | IEC 60034-30, IEC 60034-1, IE4 |
| IE4 Apex Series - 3 kW - 230/400V 3Ph - Frame 112 | 3 kW | 230/400V 3Ph | 112 | IEC 60034-30, IEC 60034-1, IE4 |
| IE4 Apex Series - 45 kW - 230/400V 3Ph - Frame 250 | 45 kW | 230/400V 3Ph | 250 | IEC 60034-30, IEC 60034-1, IE4 |
