Motor Details

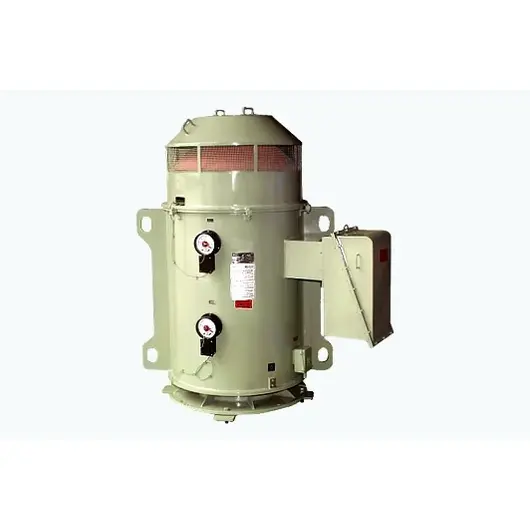

Tube Ventilated Induction Motor
IC 5A1A1, IC 5A1A6 (TETV)
Tube Ventilated Induction Motor (TETV) - CG manufactures totally enclosed tube ventilated motors (IC 5A1A1, IC 5A1A6) in both Squirrel Cage and Slip Ring designs that provide excellent performance in the most demanding environments and load conditions.
The TV Series represents TETV motors most suitable for extreme dusty, humid and polluted atmospheres. TV Series Motors are used in industries such as Cement, Steel, Rubber, Paper, Refineries, Petrochemical and Fertilizer units as well as Power Generation plants.
These motors feature tube ventilation systems that prevent dust and moisture ingress while maintaining effective cooling. All tube ventilated motors are built with robust construction and tested for reliability in harsh industrial environments.
| Description | Output Power | Voltages | Frame Size | Standards |
|---|---|---|---|---|
| Tube Ventilated TETV - 100 kW - 4 Pole - Frame 200 | 100 kW | Up to 11 kV | 200 | IEC 60034-1, IEC 60034-5, IEC 60034-6, IEC 60034-7, IS 2253 |
| Tube Ventilated TETV - 250 kW - 4 Pole - Frame 280 | 250 kW | Up to 11 kV | 280 | IEC 60034-1, IEC 60034-5, IEC 60034-6, IEC 60034-7, IS 2253 |
| Tube Ventilated TETV - 45 kW - 4 Pole - Frame 160 | 45 kW | Up to 11 kV | 160 | IEC 60034-1, IEC 60034-5, IEC 60034-6, IEC 60034-7, IS 2253 |
