Motor Details

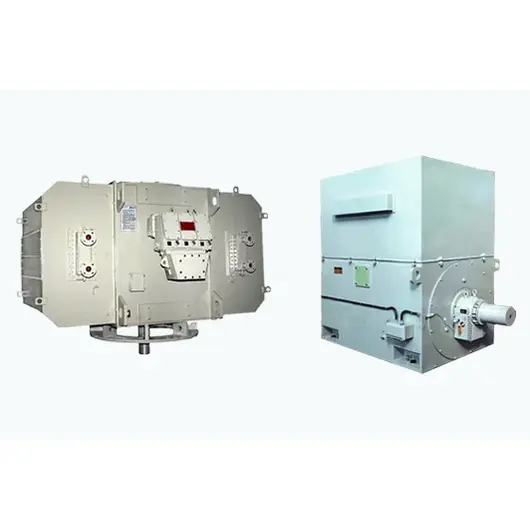

Water Cooled Induction Motors
IC 8A1W7 (CACW)
Water Cooled Induction Motors (CACW) from CG include UW and FR Series High Voltage motors with advanced cooling technology. These motors feature water cooling systems designed for maximum thermal efficiency and reliable operation in continuous duty applications.
The water cooling design allows for higher power density and superior thermal management compared to air-cooled alternatives. Available in various power ratings with IC 8A1W7 cooling configuration for industrial applications requiring efficient heat dissipation.
All water cooled motors are engineered for optimum performance in demanding industrial environments. These motors are built to the highest quality standards conforming to international specifications and providing exceptional reliability and durability.
| Description | Output Power | Voltages | Frame Size | Standards |
|---|---|---|---|---|
| Water Cooled CACW - 150 kW - 4 Pole - Frame 250 | 150 kW | Up to 11 kV | 250 | IEC 60034-1, IEC 60034-5, IEC 60034-6, IEC 60034-7, IS 2253 |
| Water Cooled CACW - 37 kW - 4 Pole - Frame 160 | 37 kW | Up to 11 kV | 160 | IEC 60034-1, IEC 60034-5, IEC 60034-6, IEC 60034-7, IS 2253 |
| Water Cooled CACW - 75 kW - 4 Pole - Frame 200 | 75 kW | Up to 11 kV | 200 | IEC 60034-1, IEC 60034-5, IEC 60034-6, IEC 60034-7, IS 2253 |
