Motor Details

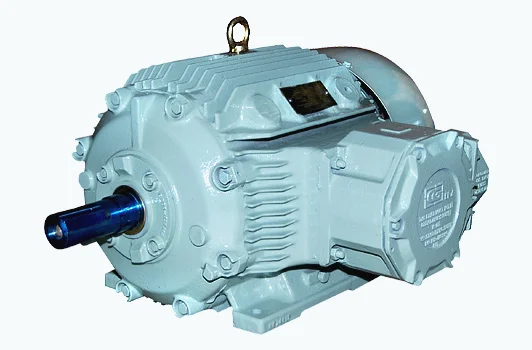

Flame Proof Motors Ex db (LV)
Low Voltage Hazardous Area
Flame Proof Motors Ex 'db' (LV) - CG offers wide range of low-voltage flameproof squirrel cage induction motors. These motors are fully enclosed with flameproof construction preventing flames from escaping the motor enclosure.
Available in various power ratings and frame sizes suitable for Zone 1 and Zone 2 hazardous areas. All flameproof motors are tested and certified for hazardous area compliance meeting international standards.
The robust flameproof design ensures safe, reliable operation in explosive atmospheres. These motors feature excellent thermal protection and are manufactured to the highest quality standards for demanding industrial environments.
| Description | Output Power | Voltages | Frame Size | Standards |
|---|---|---|---|---|
| Flame Proof Ex db LV - 0.5 kW - 230/400V 3Ph - Frame 56 | 0.5 kW | 230/400V 3Ph | 56 | ATEX II 2G, IEC 60079-1, IEC 60034-1, IS 10500 |
| Flame Proof Ex db LV - 1.5 kW - 230/400V 3Ph - Frame 90 | 1.5 kW | 230/400V 3Ph | 90 | ATEX II 2G, IEC 60079-1, IEC 60034-1, IS 10500 |
| Flame Proof Ex db LV - 15 kW - 230/400V 3Ph - Frame 200 | 15 kW | 230/400V 3Ph | 200 | ATEX II 2G, IEC 60079-1, IEC 60034-1, IS 10500 |
| Flame Proof Ex db LV - 3.7 kW - 230/400V 3Ph - Frame 112 | 3.7 kW | 230/400V 3Ph | 112 | ATEX II 2G, IEC 60079-1, IEC 60034-1, IS 10500 |
| Flame Proof Ex db LV - 7.5 kW - 230/400V 3Ph - Frame 160 | 7.5 kW | 230/400V 3Ph | 160 | ATEX II 2G, IEC 60079-1, IEC 60034-1, IS 10500 |
