MIP7.52-30
MIP7.52-30

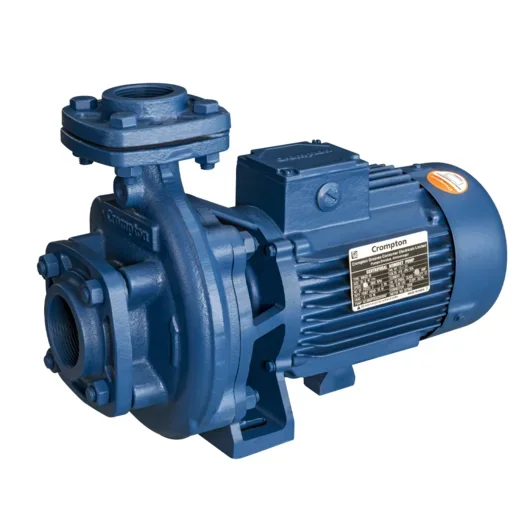

MIP7.52-30 from Crompton is a precision-engineered agricultural irrigation pump, delivering reliable water-handling performance for matched to farm water source — borewell, open well, or surface. Well-suited to crop irrigation, livestock water supply, farm water management, drip irrigation feeds, and water transfer between storage tanks. Classified as submersible duty, it continuous agricultural duty in dusty, demanding field environments.
Technical specifications:
- Rated power: 7.5 HP / 5.6 kW
- Power supply: single-phase 230V, 50 Hz
- Delivery pipe size: 25-32 mm
- Number of stages: 1 (multi-stage impeller for sustained head)
- ISI / BIS certified: Conforms to Indian Standards (IS 8034 / IS 9079 / IS 14220 as applicable)
- Motor protection: IP55-equivalent for submersible variants; thermal overload protection on terminal box
- Construction: Stainless steel sleeves, brass impellers (or thermoplastic for corrosive water), and cast-iron motor body where applicable
The MIP7.52-30 is engineered for reinforced construction for outdoor agricultural use with anti-corrosion materials. The single-stage hydraulic profile is optimised for the application — high efficiency at the design duty point with smooth flow characteristics. ISI/BIS certification means the pump has passed independent testing for hydraulic performance, electrical safety, and minimum efficiency thresholds mandated by Indian Standards. For Agricultural irrigation pumps of this rating, installation typically requires properly sized cabling, an appropriate control panel with dry-run protection, and correct earthing as per IS 3043.
Bombay Engineering Syndicate is Crompton's authorised distributor since 1957, supplying the MIP7.52-30 across Maharashtra, Gujarat, and pan-India through our Mumbai and Ahmedabad warehouses. We stock current factory-fresh inventory, provide installation guidance, and coordinate post-sale service through the authorised Crompton network. Our 67 years of industry experience means we help customers select the right pump for their specific application — not just the cheapest or most readily available. Submit a pump inquiry for personalised sizing and a same-day quotation, or contact our team to discuss your installation requirements.
Additional information
-
Kw/Hp
-
Supply Phase
-
Delivery Pipe
-
No. of Stages
-
ISI
-
MNRE
-
Agricultural Pumps Type
Submersible
Specifications
| Catref | Power (Kw) | Power (HP) | Supply Phase | Pipe Size (mm) | No. of Stage | Head Range (m) | Discharge Range | Price | Warranty |
|---|---|---|---|---|---|---|---|---|---|
| MIP318-HF | 2.2 | 3 | 1 | 80 | 1 | 18 | 804-450 LPM | Call for Price | 24 Months |
| MIP32-15 | 2.2 | 3 | 1 | 80 | 1 | 18 | 875-450 LPM | Call for Price | 24 Months |
| MIP52-27 | 3.7 | 5 | 1 | 80 | 1 | 21 | 850-450 LPM | Call for Price | 24 Months |
| MIP528-HF | 3.7 | 5 | 1 | 80 | 1 | 28 | 840-420 LPM | Call for Price | 24 Months |
| MIP52FF | 3.7 | 5 | 1 | 80 | 1 | 24 | 900-450 LPM | Call for Price | 24 Months |
| MIP7.52-30 | 5.5 | 7.5 | 1 | 80 | 1 | 21 | 1080-825 LPM | Call for Price | 24 Months |
| MIP7.52FF | 5.5 | 7.5 | 1 | 80 | 1 | 24 | 1100-650 LPM | Call for Price | 24 Months |
| MIP830-HF | 5.5 | 7.5 | 1 | 80 | 1 | 30 | 1110-750 LPM | Call for Price | 24 Months |
| MIP10.2-38 | 7.5 | 10 | 1 | 80 | 1 | 30 | 1150-950 LPM | Call for Price | 24 Months |
| MIP12.52-45 | 9.3 | 12.5 | 1 | 80 | 1 | 42 | 1245-670 LPM | Call for Price | 24 Months |
| MIP15.2-51 | 11 | 15 | 1 | 80 | 1 | 45 | 1350-700 LPM | Call for Price | 24 Months |
