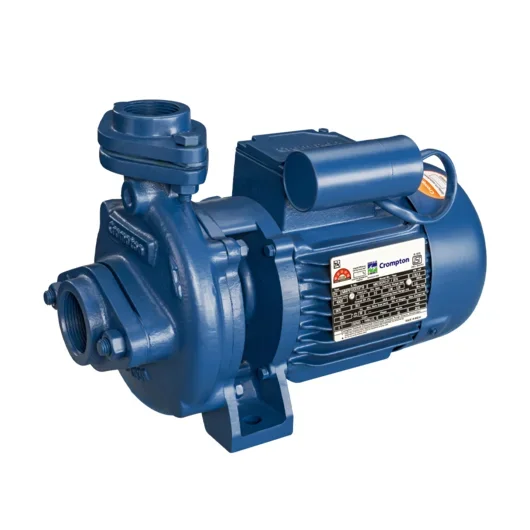

MBG12(1PH)-21

Engineered for dependable performance, the MBG12(1PH)-21 is a centrifugal monoset pump, delivering reliable water-handling performance for surface installation with foot valve and suction line. Best deployed in water transfer between storage tanks, garden irrigation, light agricultural duty, and surface water lifting. Classified as centrifugal duty, it transferring water from open sources at moderate flow rates.

Technical specifications:

• Rated power: 1.2 HP / 0.9 kW
• Power supply: single-phase 230V, 50 Hz
• Delivery pipe size: 32-50 mm
• ISI / BIS certified: Conforms to Indian Standards (IS 8034 / IS 9079 / IS 14220 as applicable)
• Motor protection: IP55-equivalent for submersible variants; thermal overload protection on terminal box
• Construction: Stainless steel sleeves, brass impellers (or thermoplastic for corrosive water), and cast-iron motor body where applicable

The MBG12(1PH)-21 is engineered for monoset close-coupled design for compact installation. The single-stage hydraulic profile is optimised for the application — high efficiency at the design duty point with smooth flow characteristics. ISI/BIS certification means the pump has passed independent testing for hydraulic performance, electrical safety, and minimum efficiency thresholds mandated by Indian Standards. For Centrifugal monoset pumps of this rating, installation typically requires properly sized cabling, an appropriate control panel with dry-run protection, and correct earthing as per IS 3043.

Bombay Engineering Syndicate is Crompton's authorised distributor since 1957, supplying the MBG12(1PH)-21 across Maharashtra, Gujarat, and pan-India through our Mumbai and Ahmedabad warehouses. We stock current factory-fresh inventory, provide installation guidance, and coordinate post-sale service through the authorised Crompton network. Our 67 years of industry experience means we help customers select the right pump for their specific application — not just the cheapest or most readily available. Submit a pump inquiry for personalised sizing and a same-day quotation, or contact our team to discuss your installation requirements.
