WIN I
WIN I

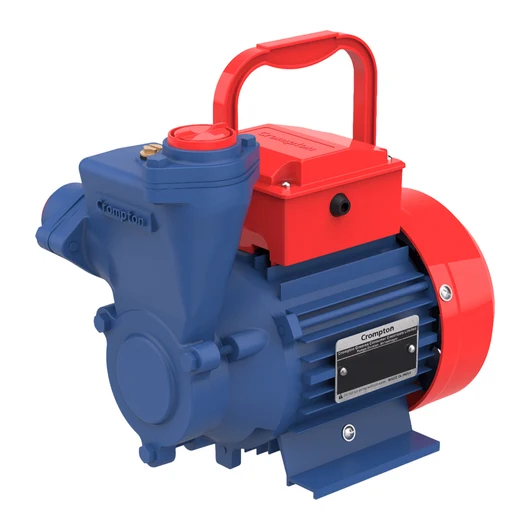

The Crompton WIN I is a 1 HP single-phase self-priming mini pump for everyday household water supply, delivering up to 2,600 litres per hour with a maximum head of 24 metres. A wide-voltage design keeps it running steadily through supply fluctuations, while double coating guards against corrosion and F-class insulation with an anti-drip adapter protects the motor in use. A simple, low-maintenance choice for filling overhead tanks and boosting tap and shower flow.
Key specifications
- Rated power: 1 HP / 0.75 kW
- Power supply: single-phase, 180–260 V wide-voltage
- Maximum discharge: 2,600 LPH
- Maximum head: 24 m
- Delivery pipe size: 25 mm
- Protection: double coating, F-class insulation, anti-drip adapter
- Warranty: 12 months
Bombay Engineering Syndicate is a Crompton authorised pump dealer and distributor since 1957, supplying the WIN I across Mumbai, Ahmedabad and pan-India with genuine factory-fresh stock, expert sizing help and authorised after-sales service. Send a pump inquiry for a same-day quotation, or contact our team to choose the right model.
Additional information
-
Kw/Hp
-
Supply Phase
-
Delivery Pipe
-
No. of Stages
-
ISI
-
MNRE
-
Agricultural Pumps Type
Mini Self-Priming
Specifications
| Catref | Power (Kw) | Power (HP) | Supply Phase | Pipe Size (mm) | No. of Stage | Head Range (m) | Discharge Range | Price | Warranty |
|---|---|---|---|---|---|---|---|---|---|
| WIN I | 0.75 | 1 | 1 | 25 | 1 | 24 | up to 2600 LPH | Call for Price | 12 Months |
