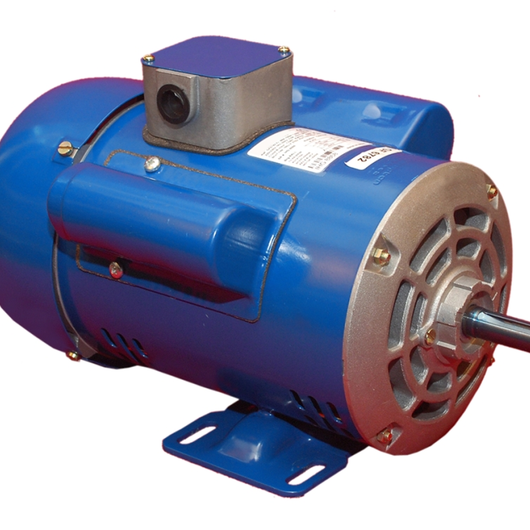

NEMA 56 Frame Motors

Versatile General-Purpose NEMA 56 Frame Motors

NEMA 56 Frame Motors are the most widely deployed small industrial motors in North American specifications — used across pumps, fans, compressors, machinery, and consumer/commercial equipment. The NEMA 56 frame (5.5" centerline height) accommodates power ratings from 1/3 HP through 3 HP in both single-phase and three-phase configurations.

Bombay Engineering Syndicate supplies Crompton NEMA 56 frame motors widely used by Indian OEMs serving export markets (USA, Canada, Mexico, Latin America), and by domestic industries adopting NEMA standards for equipment compatibility. Available in C-face, C-flange, rigid-base, and resilient-base mounting variants with both standard and high-efficiency designs.

Standard voltage configurations cover 115/230V single-phase (capacitor-start, capacitor-run, PSC) and 208-230/460V three-phase. Frame construction includes rolled-steel housings with cast aluminium end-shields, sealed ball bearings, Class F insulation, and IP44 protection (higher IP available on request). Conduit box positioning standard at F1, F2, F3 per NEMA specifications.

BES holds inventory of common NEMA 56 motor ratings for quick OEM delivery. We provide ECC&I duty rating documentation, UL/CSA compliance certificates, and dimensional drawings to support customer technical reviews. Quantity discounts available for production orders.
