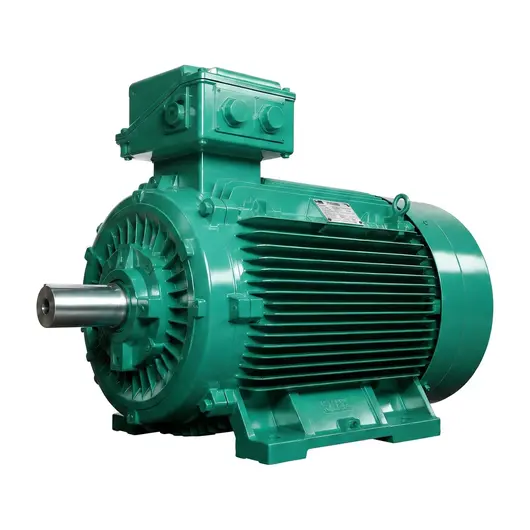

NEXORA IE3 / IE4 Premium Efficiency Motors
NEXORA IE3 / IE4 Premium Efficiency Motors
IE3 Premium / IE4 Super Premium Efficiency
NEXORA is CG Power's latest energy-efficient motor platform, available in IE3 Premium and IE4 Super Premium efficiency classes. Cast iron squirrel cage induction motors covering 37 kW to 90 kW in 2, 4, 6 and 8 pole on CG280SM / CG280SMX frames, with full-load efficiencies up to 96.1% (IE4). Designed for 415V ±10%, 50Hz supply with TEFC IC411 cooling, IP55 protection, Class F insulation with Class B temperature rise, S1 continuous duty and 50°C ambient rating. Features advanced C3M corrosion protection, a unique insulation scheme, optimized thermal management and a low-noise, low-vibration platform for lower total cost of ownership. Conforms to IS 12615:2026 / IEC 60034-30-1 and IS 15999-1. CE compliant.
| Description | Output Power | Voltages | Frame Size | Standards |
|---|---|---|---|---|
| NEXORA IE3 - 37 kW - 8 Pole - Frame CG280SM (37P8GT) | 37 kW | 415V 3Ph | CG280SM | IS 12615:2026, IEC 60034-30-1, IE3 |
| NEXORA IE3 - 45 kW - 6 Pole - Frame CG280SM (45P6GT) | 45 kW | 415V 3Ph | CG280SM | IS 12615:2026, IEC 60034-30-1, IE3 |
| NEXORA IE3 - 45 kW - 8 Pole - Frame CG280SM (45P8GT) | 45 kW | 415V 3Ph | CG280SM | IS 12615:2026, IEC 60034-30-1, IE3 |
| NEXORA IE3 - 55 kW - 6 Pole - Frame CG280SM (55P6GT) | 55 kW | 415V 3Ph | CG280SM | IS 12615:2026, IEC 60034-30-1, IE3 |
| NEXORA IE3 - 75 kW - 2 Pole - Frame CG280SM (75P2GT) | 75 kW | 415V 3Ph | CG280SM | IS 12615:2026, IEC 60034-30-1, IE3 |
| NEXORA IE3 - 75 kW - 4 Pole - Frame CG280SM (75P4GT) | 75 kW | 415V 3Ph | CG280SM | IS 12615:2026, IEC 60034-30-1, IE3 |
| NEXORA IE3 - 90 kW - 2 Pole - Frame CG280SM (90P2GT) | 90 kW | 415V 3Ph | CG280SM | IS 12615:2026, IEC 60034-30-1, IE3 |
| NEXORA IE3 - 90 kW - 4 Pole - Frame CG280SM (90P4GT) | 90 kW | 415V 3Ph | CG280SM | IS 12615:2026, IEC 60034-30-1, IE3 |
| NEXORA IE4 - 37 kW - 8 Pole - Frame CG280SM (37S8GT) | 37 kW | 415V 3Ph | CG280SM | IS 12615:2026, IEC 60034-30-1, IE4 |
| NEXORA IE4 - 45 kW - 6 Pole - Frame CG280SM (45S6GT) | 45 kW | 415V 3Ph | CG280SM | IS 12615:2026, IEC 60034-30-1, IE4 |
| NEXORA IE4 - 45 kW - 8 Pole - Frame CG280SM (45S8GT) | 45 kW | 415V 3Ph | CG280SM | IS 12615:2026, IEC 60034-30-1, IE4 |
| NEXORA IE4 - 55 kW - 6 Pole - Frame CG280SM (55S6GT) | 55 kW | 415V 3Ph | CG280SM | IS 12615:2026, IEC 60034-30-1, IE4 |
| NEXORA IE4 - 75 kW - 2 Pole - Frame CG280SM (75S2GT) | 75 kW | 415V 3Ph | CG280SM | IS 12615:2026, IEC 60034-30-1, IE4 |
| NEXORA IE4 - 75 kW - 4 Pole - Frame CG280SMX (75S4GT) | 75 kW | 415V 3Ph | CG280SMX | IS 12615:2026, IEC 60034-30-1, IE4 |
| NEXORA IE4 - 90 kW - 2 Pole - Frame CG280SM (90S2GT) | 90 kW | 415V 3Ph | CG280SM | IS 12615:2026, IEC 60034-30-1, IE4 |
| NEXORA IE4 - 90 kW - 4 Pole - Frame CG280SMX (90S4GT) | 90 kW | 415V 3Ph | CG280SMX | IS 12615:2026, IEC 60034-30-1, IE4 |
